3 Way Waterproof T-Type Electrical Connector IP67 Cable Tee Connector

Name: 3 Way Waterproof TType Electrical Connector IP67 Cable Tee Connector
Brand: DREAM-START
Price: 2.13 USD

Quality 3 Way Waterproof T-Type Electrical Connector IP67 Cable Tee Connector wholesale

Place of Origin : China

Brand Name : DREAM-START

Model Number : DR-T11

MOQ : 10 pieces

Price : $2.13/pieces 10-499 pieces

Certification : ROHS

Supply Ability : 10000 Piece/Pieces per Week

Gender : Male/Female

Product name : IP68 T Connector

Keywords : waterproof connector

Rated Voltage : 250V AC

Rated Current : 20A

Contact resistance : 10 MΩ

Cable range : 6-10mm

Pins Material : Copper/Copper alloy(Gold plating/Nickel plating)

Relative Humidity : ≤90%

Contact Now

Screw threaded three ways assembly, simple in using, convenient in installation;
2. Brass plating nickel finish, high-strength corrosion resistance and electrical conductivity could effectively response to thetemperature rise changes caused by the current;
3. Unique tablet design, the wire need no tin plating, then crimping will be more reliable, and will not damage the copper wire structure
4. Nylon material, stable electrical performance, high-strength resistance to pressure, anti-heat, anti-explosion, and corrosion;
5. Increases the design flexibility: the use of connectors gives engineers greater flexibility in designing and integrating new
products, as well as in composing systems with components.

Parameters
Cable Specification	<2.5mm² (2pin)
Cable range	6-10mm
Pins Material	Copper/Copper alloy(Gold plating/Nickel plating)
External Mold Material	nylon pa66
Operation Rating	PA66+30%GF, -40℃ ~ +125℃
Working temperature	-25℃ ~ +105℃
Storage temperature	-25℃ ~ +80℃
Protection Class	IP68

3 Way Waterproof T-Type Electrical Connector IP67 Cable Tee Connector

Packing
With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.

cartons and colour cartons as customers aksed

Delivery
normally within 20days for quantity 10000-20000pcs order quntity

if the order packing is complicated,such as have colour paper stickers

it need more time for lead time.

wellcome all customer to come to visit us

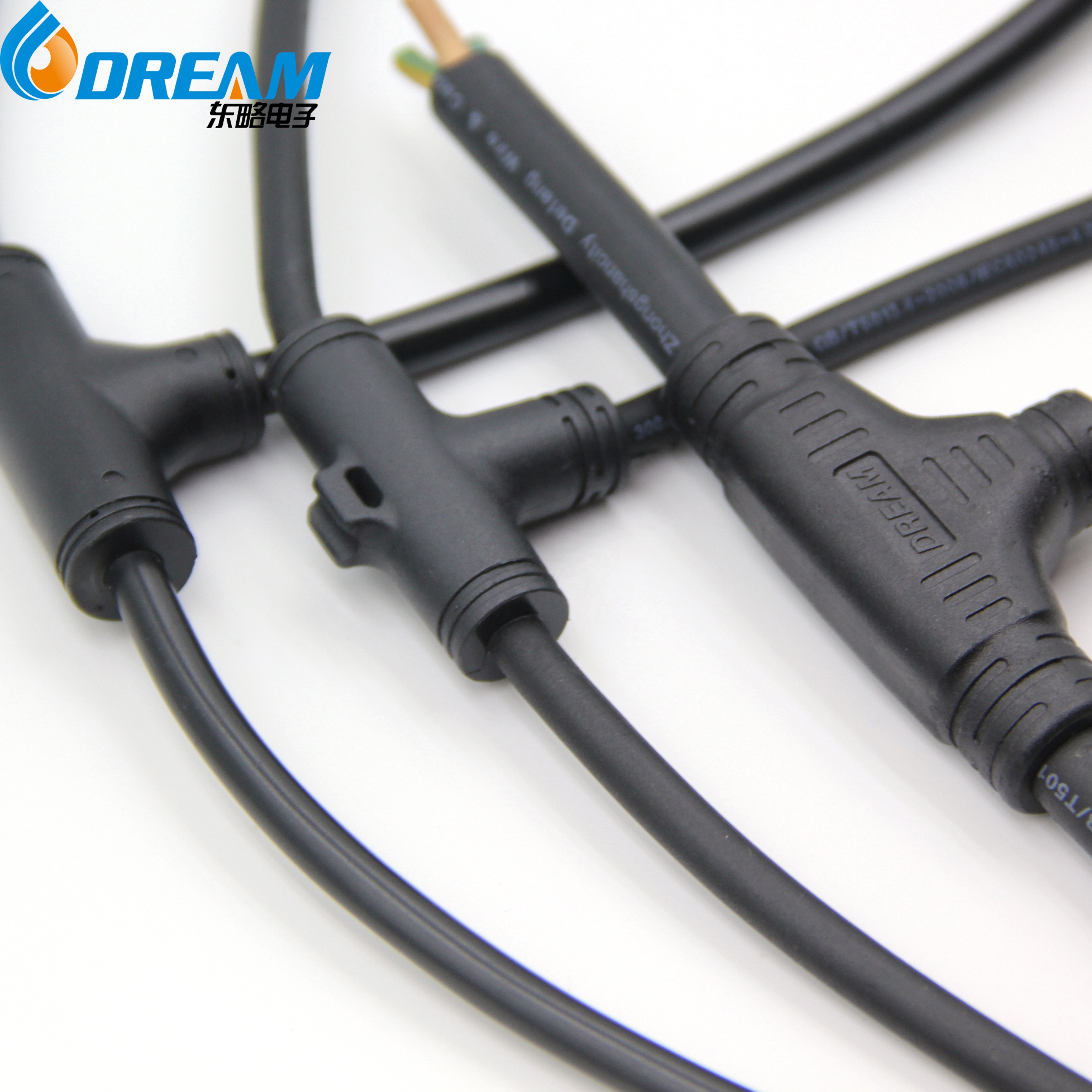

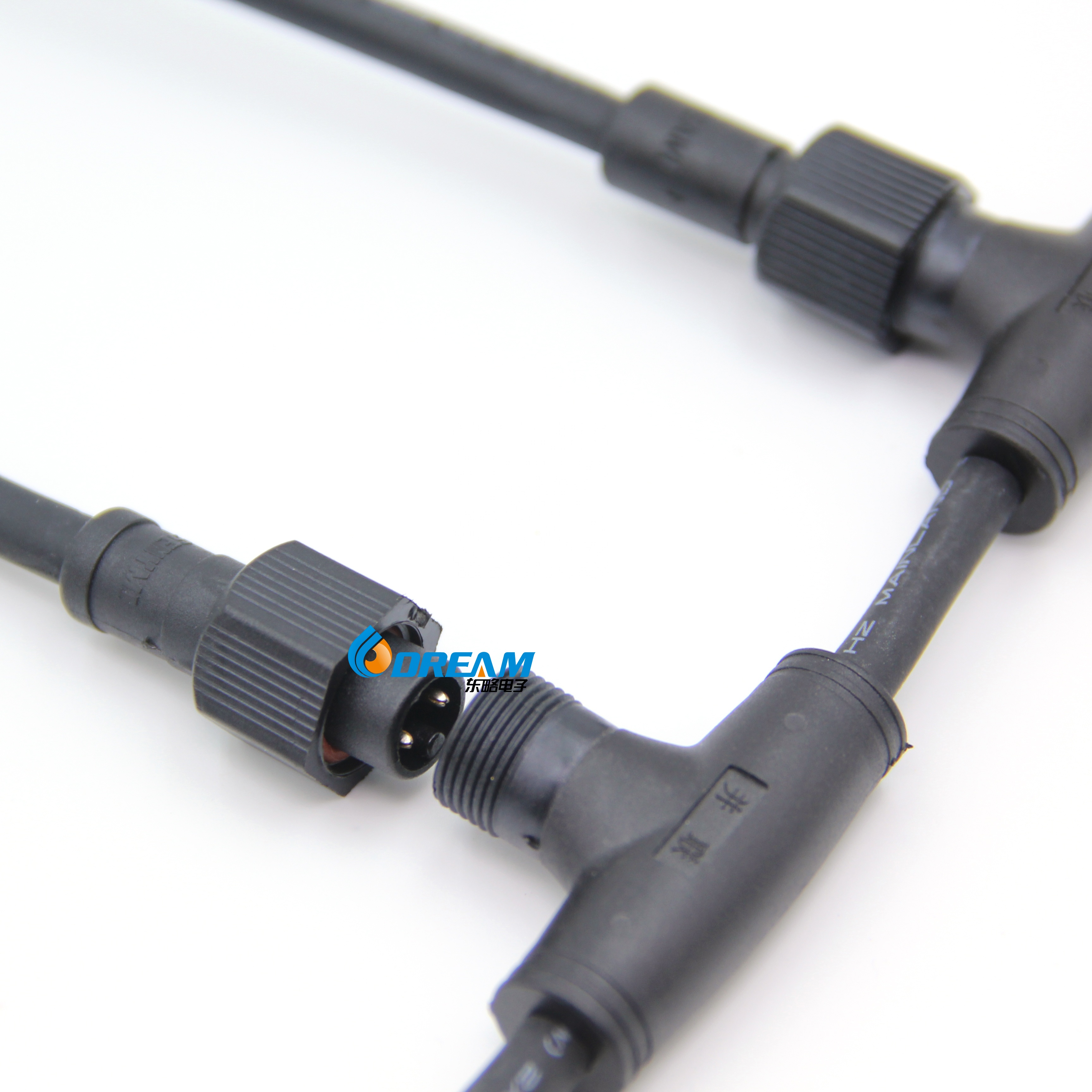

3 Way Waterproof T-Type Electrical Connector IP67 Cable Tee Connector Images
