Benefits of M12 industrial circular connector:
Ruggedness: M12 connectors and cable assemblies are built to withstand tough conditions, making them perfect for outdoor and industrial applications.
Variety: They come in various configurations, with different numbers of pins and coding options fpr power and data application.

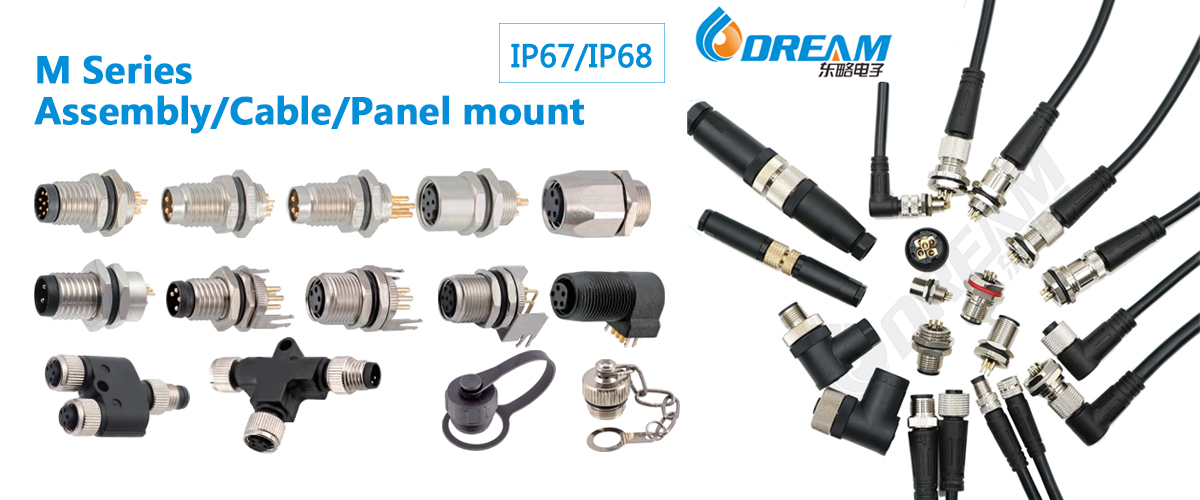

Panel mounting receptacle, overmolding plugs and sockets and field installable mating connectors in difference types.
Coding: M12 often incorporate coding to prevent mismating. The coding ensures that connectors with different coding configurations cannot be connected,
reducing the risk of errors or damage.
Protection: Some shielded M12 are offer shielding to protect against electromagnetic interference (EMI).
IP Ratings: These connectors often come with high IP ratings (IP66, IP67, IP68, IP69 and IP69k), ensuring protection against dust and water ingress.
Resistance to Harsh Environments: M12 is designed to withstand harsh environmental conditions, including exposure to moisture, dust, and vibrations.
M12 Screw Thread: The M12 thread connector with a 12-mm locking thread ensures a secure connection, preventing accidental disconnection due to
vibration or other factors common in industrial settings. Also existing Push-Pull M12 standard connector.

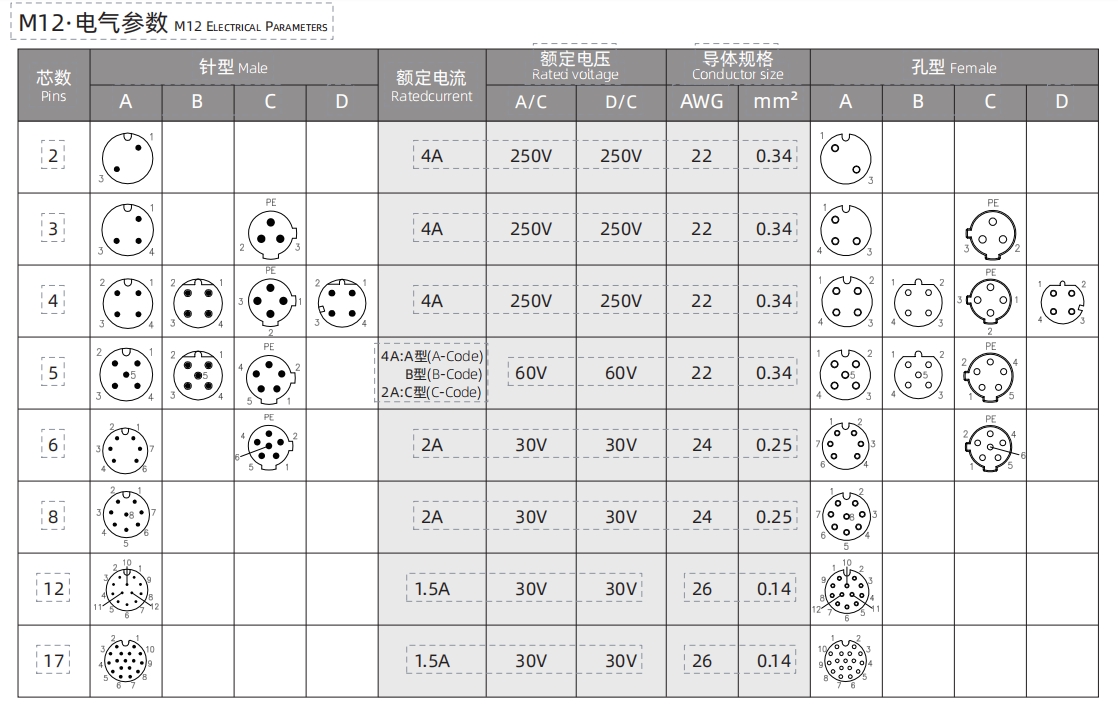

Pin Counts: 2 pin, 3 pin, 4 pin, 5 pin, 6 pin, 7 pin, 8 pin, 12 pin and 17 pin. Soldering, PCB, Crimp, IDC screw termination pins. Male and Female straight / right angle pins.
| Pins | 3pin 4pin 5pin 6pin 8pin 12pin 17pin |
| Gender | Female/MALE |
| Waterproof Rating | IP67, IP68 |
| Wire Size | 0.14-0.5mm (AWG 26-20) |
| Contactsy | Brass, Gold Plated |
| Service | OEM/ODM |
Applications:
M8 and M12 electrical connectors are also find a wide range of applications across various industrial environments due to their compact design, durability,
and versatility. Here are more applications where M12 male connector and female connector are commonly used:
We are a supplier specializing in the production, design and sale of waterproof connector
We can bring you:
1. Latest and most professional product information
2. OEM&ODM high quality and low price products
3. The fastest delivery
4. Complete logistics system:
Product Tags:
|
|

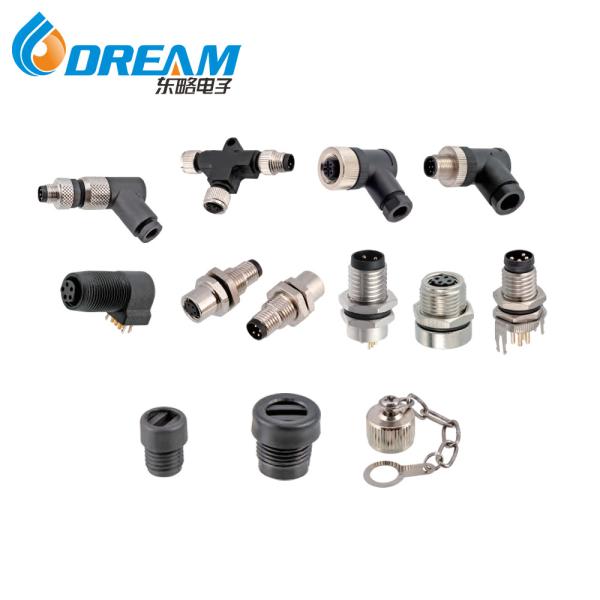

M Series M12 Industrial Circular Connector Waterproof M12 Male/Female Connectors Images
|
